6063 Aluminum elbow for Petroleum oil tanker truck

The 6063 Aluminum elbow for Petroleum oil tanker truck is a high-quality aluminum alloy product produced by heat treatment and compression molding process.It has excellent processing properties, excellent weldability, extrudability and electroplating properties, good corrosion resistance and toughness, easy to polish, color film, and excellent anodizing effect....

1 The Introduction of 6063 Aluminum elbow for Petroleum oil tanker truck

The 6063 Aluminum elbow for Petroleum oil tanker truck is a high-quality aluminum alloy product produced by heat treatment and compression molding process.

It has excellent processing properties, excellent weldability, extrudability and electroplating properties, good corrosion resistance and toughness, easy to polish, color film, and excellent anodizing effect.

2 The Product specifications of 6063 Aluminum elbow for Petroleum oil tanker truck

* Alloy: 6063

* 6063 Aluminum elbow for Petroleum oil tanker truck is divided into angles: 45° and 90°180° are the most commonly used ones, and other aluminum elbows with abnormal angles such as 60° are included according to actual needs.

* Aluminium elbow connection methods include: direct welding (the most common method) flange connection, hot melt connection, electrofusion connection, threaded connection and socket connection, etc.

* Common specifications of 6063 Aluminum elbow for Petroleum oil tanker truck: 32*3mm, 100*4mm, 159*6mm, etc; it can also be produced according to customer requirements.

*Purpose: Connect two pipes with the same or different nominal diameters, so that the pipeline can be turned at 90°, 45°, 180° and various degrees.

3 The Chemical composition of 6063 Aluminum elbow for Petroleum oil tanker truck

Alloy

Chemical component(%)

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ni

Ti

Other

Al

Each

Total

6063

0.20-

0.6

0.35

0.10

0.10

0.45-

0.9

0.10

0.10

0.10



0.05

0.15

Remainder



4 The Application of 6063 Aluminum elbow for Petroleum oil tanker truck

The 6063 Aluminum elbow for Petroleum oil tanker truck has excellent processing properties, excellent weldability, extrudability and electroplating properties, good corrosion resistance and toughness, and can be used as a connecting pipe for oil tanker,

it is used to connect the pipe at the turn to change the direction of the pipe.



5 The Common angle and specification table of 6063 Aluminum elbow for Petroleum oil tanker truck

1)Long Radius 90 Degree Reducing Aluminum Elbow

                                                                    Unit: mm

Nominal Dimension

DN

D

D1

center to end      A

I Series

Ⅱ Series

I Series

Ⅱ Series

50×40

60.3

57

48.2

45

76

50×32

60.3

57

42.4

38

76

50×25

60.3

57

33.7

32

76

65×50

73.0

76

60.3

57

95

65×40

73.0

76

48.3

45

95

65×32

73.0

76

42.4

38

95

80×65

88.9

89

73.0

76

114

80×50

88.9

89

60.3

57

114

80×40

88.9

89

48.3

45

114

90×80

101.6



88.9



133

90×65

101.6



73.0



133

90×50

101.6



60.3



133

100×90

114.3

108

101.6



152

100×80

114.3

108

88.9

89

152

100×65

114.3

108

73.0

76

152

100×50

114.3

108

60.3

57

152

125×100

141.3

133

114.3

108

190

125×90

141.3



101.6



190

125×80

141.3

133

88.9

89

190

125×65

141.3

133

73.0

76

190

150×125

168.3

159

141.3

133

229

150×100

168.3

159

114.3

108

229

150×90

168.3



101.6



229

150×80

168.3

159

88.9

89

229

200×150

219.1

219

168.3

159

305

200×125

219.1

219

141.3

133

305

200×100

219.1

219

114.3

108

305

250×200

273.0

273

219.1

219

381

250×150

273.0

273

168.3

159

381

250×125

273.0

273

141.3

133

381

300×250

323.9

325

273.0

273

457

300×200

323.9

325

219.1

219

457

300×150

323.9

325

168.3

159

457

350×300

355.6

377

323.9

325

533

350×250

355.6

377

273.0

273

533

350×200

355.6

377

219.1

219

533

400×350

406.4

426

355.6

377

610

400×300

406.4

426

323.9

325

610

400×250

406.4

426

273.0

273

610

450×400

457

480

406.4

426

686

450×350

457

480

355.6

377

686

450×300

457

480

323.9

325

686

450×250

457

480

273.0

273

686

500 ×450

508

530

457.0

480

762

500 ×400

508

530

406.4

426

762

500 ×350

508

530

355.6

377

762

500 ×300

508

530

323.9

325

762

500 ×250

508

530

273.0

273

762

600 ×550

610

630

559.0



914

600 ×500

610

630

508.0

530

914

600 ×450

610

630

457.0

480

914

600 ×400

610

630

406.4

426

914

600 ×350

610

630

356.6

377

914

600 ×300

610

630

323.9

325

914

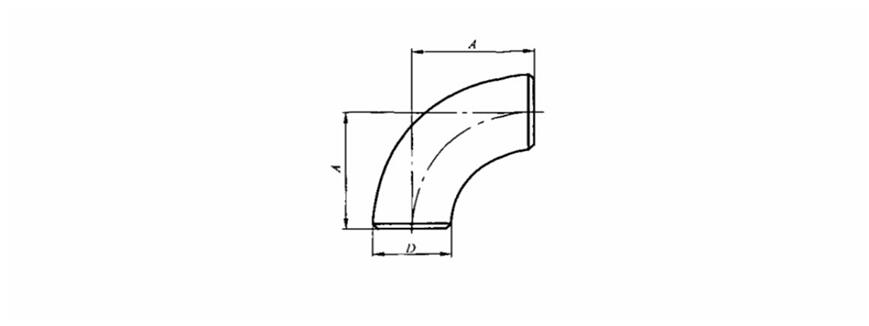

2)Long Radius 90 Degree Aluminum Elbow

                                                                     Unit: mm

Nominal Dimension

DN



Bevel

D

center to end

I Series

Ⅱ Series

90 Degree Aluminum Elbow

A

45 Degree Aluminum Elbow

B

15

21.3

18

38

16

20

26.9

25

38

19

25

33.7

32

38

22

32

42.4

38

48

25

40

48.3

45

57

29

50

60.3

57

76

35

65

73.0

76

95

44

80

88.9

89

114

51

90

101.6



133

57

100

114.3

108

152

64

125

141.3

133

190

79

150

168.3

159

229

95

200

219.1

219

305

127

250

273.0

273

381

159

300

323.9

325

457

190

350

355.6

377

533

222

400

406.4

426

610

254

450



480

686

286

500

508

530

762

318

550

559



838

343

600

610

630

914

381

650

660



991

406

700

711

720

1067

438

750

762



1143

470

800

813

820

1219

502



3)short radius 90 degree elbow

Nominal Dimension

DN

Bevel

D

Middle to End A

I Series

Ⅱ Series

25

33.7

32

25

32

42.4

38

32

40

48.3

45

38

50

60.3

57

51

65

73.0

76

64

80

88.9

89

76

90

101.6



89

100

114.3

108

102

125

141.3

133

127

150

168.3

159

152

200

219.1

219

203

250

273.0

273

254

300

323.9

325

305

350

355.6

377

356

400

406.4

426

406

450

457

480

457

500

508

530

508

550

559



559

600

610

630

610
